Multicat Dredging Support & Buoy Handling Vessel

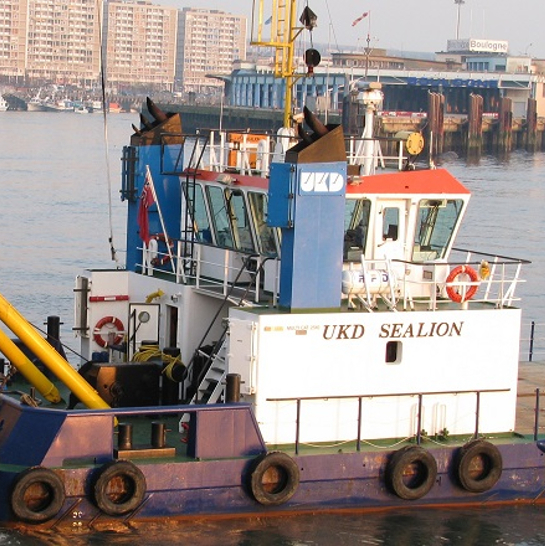

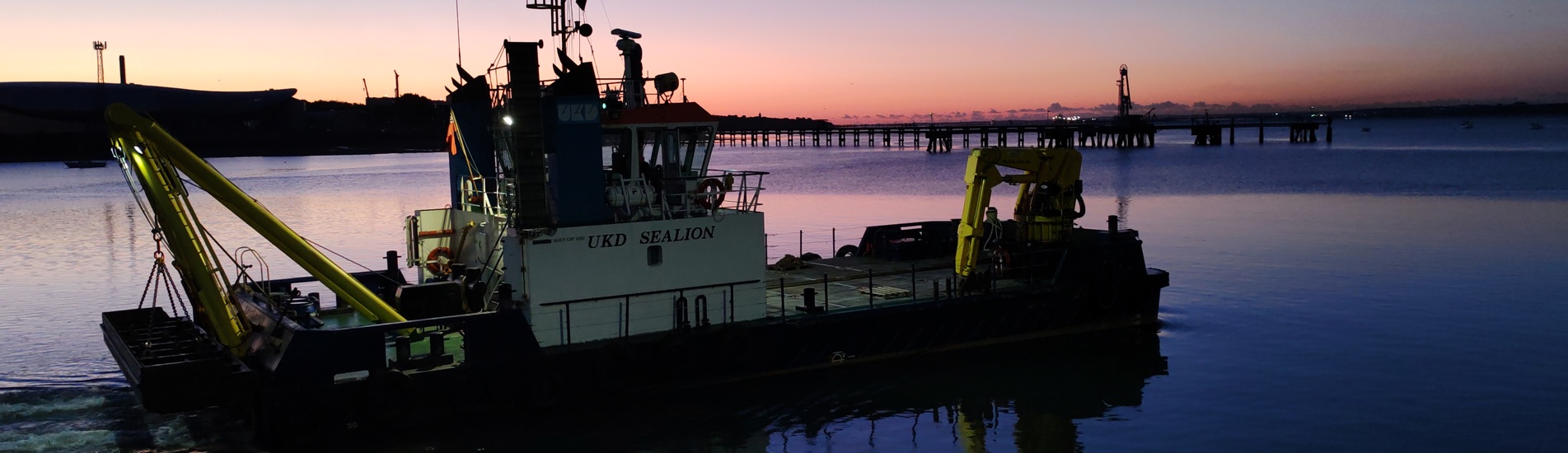

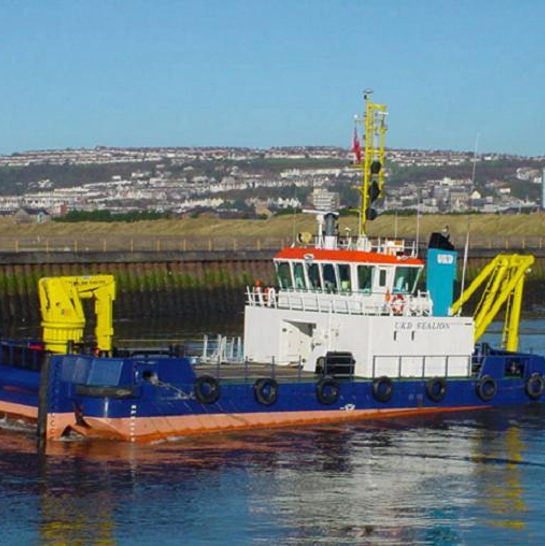

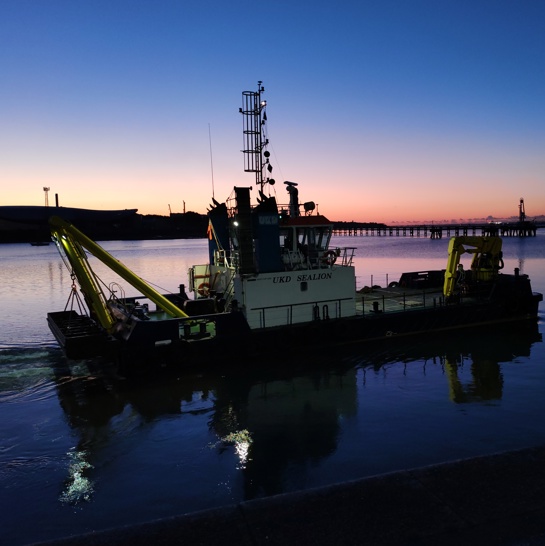

UKD Sealion is a 25 metre Multicat built by Damen Shipyards for UK Dredging. She is specified to provide a multi purpose dredging support vessel with bed levelling, buoy handling and survey capability.
Her principal duties are those of a bed leveller and her 10 metre plough is capable of working at a depth of 20 metres.
The Multicat form provides the stability to assist in dredging support, to handle floating pipelines and to act as a marine working platform.
Fully equiped with DGPS and digital mapping, her survey equipment is fully compatible with all UK Dredging's fleet and able to act on a stand alone basis. A winch encoder accurately determines plough depth so that the combined package offers a complete survey and bed levelling service.
Winch arrangements permit 3 point anchoring, allowing accurate positioning for holding the vessel on station in difficult tidal or weather conditions.
With accommodation for 5 people UKD Sealion can be self sufficient and is available for work 24 hours per day.
|Builder||Damen Shipyards, Holland|
|Gross Tonnage||224 tonnes|
|Length Overall||25.97 m|
|Beam Overall||10.06 m|
|Draught Maximum||2.55 m|
|Deck Hydraulic Crane||Heila HLRM 140-2S|
|Main Propulsion||Cummins KTA 19M3|
2 x 477 kw
|Plough Width||10 m (7.6 tonnes)|
|Bollard Pull||17.6 tonnes|
Please click here for the UKD Sealion Brochure pdf
