Trailing Suction Hopper Dredger

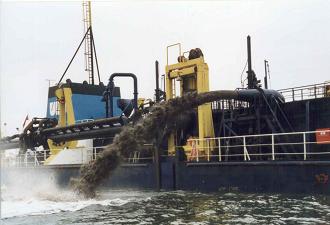

A trailing suction hopper dredger designed for use in open sea and estuarial locations, UKD Marlin has the ability and manoeuvrability to dredge in confined locations such as enclosed docks.
The vessel is equipped with twin suction pipes, swell compensators, de-gassing and drag-head jets. She has the facility to discharge via bottom doors or to pump ashore and is fitted with an underwater overflow via an adjustable weir.
All dredging equipment is manufactured by IHC, and a fully computerised control and monitoring system is installed to ensure efficient operation. Navigation guidance is by DGPS which, together with digital mapping of the dredge area, provides the Master with precision positioning.
The vessel is rquipped with VHF, MF and GMDSS communications, twin radar sets, echo sounder, radio tide guage receiver and mobile telephone, e-mail and fax links.
|Classification||BV 13/3E Deep Sea Hopper Dredger|
|Length Overall||85.0 m|
|Breadth Moulded||16.0 m|
|Draught Light||3.1 m|
|Draught Loaded||5.6 m|
|Gross Tonnage||2,692 tonnes|
|Hopper Capacity||2,968 m3|
|Suction Pipes||2 No. 700 mm diameter|
|Max. Dredge Depth||25.0 m|
|Main Propulsion||2 x 1,080 kw|
|Dredge Pump||600 kw|
|Jet Pump||340 kw|
|Bow Thrust||305 kw|
